LED lighting
Low light makes kitchen work much more difficult. The same goes for light bulbs that constantly burn out. To guarantee ease of use, Amica hoods are equipped with an innovative energy-efficient LED lighting system. The LED lights are highly durable, and emit a bright and pleasant light which isn’t tiring for the eyes. Choose the Amica hood, and enjoy the best solutions!
i
The graphic materials provided in the product description, such as images and videos, show how a particular function works and may not precisely represent how a specific model works.

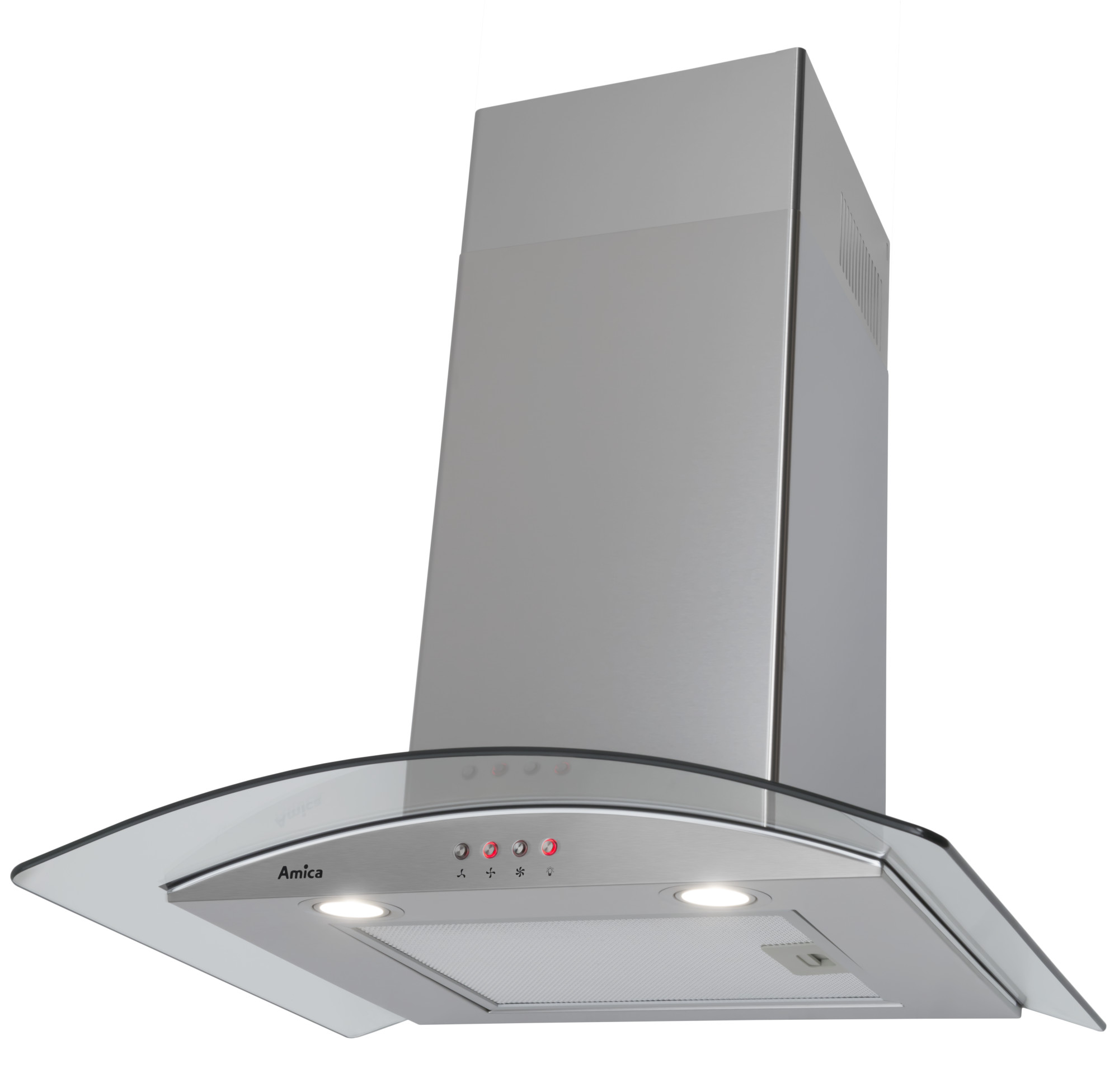

OKP6321G
-
FEATURES
-
Accessories:
Pipe -
Air flaps:
Yes -
Montage template:
Yes
-
Panel - language version:
Pictograms -
Pipe:
Yes -
Protection class of electric shock:
I_Class
-
Low noise level:
No -
Type of work:
Extraction/Recirculation
-
Accessories:
-
Equipment
-
Illuminated push buttons:
Yes -
Number of carbon filters:
1 -
Number of grease filters:
1
-
Number of layers in grease filter:
5 -
Number of speed:
3 -
Type of control:
Soft touch
-
Type of grease filters:
Aluminium frame -
Carbon filter type:
FWP 03
-
Illuminated push buttons:
-
Technical data
-
Air flow at 1 speed - extractor by EN 61591:
350 m3/h -
Air flow at 2 speed - extractor by EN 61591:
400 m3/h -
Air flow at 3 speed - extractor by EN 61591:
455 m3/h
-
Air Flow at Maximum Speed in Normal Use [Intensive or Boost Excluded]:
455 m3/h -
Air Flow at Minimum Speed in Normal Use:
350 m3/h -
Air Flow Rate at Best Efficiency Point - Q BEP:
251.8 m3/h
-
Air Pressure at Best Efficiency Point P BEP:
264 Pa -
Annual energy consumption:
62.6 kWh -
Annual energy consumption:
62.6 kWh
-
Average Illumination of the Lighting System on the Cooking Surface - E middle:
78 lux -
Container qty 40'HQ:
435 -
Control panel on one side/two sides:
One side
-
Dimensions of grease filter:
325.9 x 277.7 mm -
Display color:
Red -
Distance from light cover to wall:
32.3 cm
-
Distance to electric hob:
45 cm -
Distance to gas hob:
65 cm -
Electric Power Input at Best Efficiency Point - W BEP:
118.2 W
-
Energy Efficiency Index - EEI hood:
76.3 -
Fluid Dynamic Efficiency - FDE hood:
15.6 -
Fluid Dynamic Efficiency Class:
D
-
Grease Filtering Efficiency - GFE hood:
72 % -
Grease Filtering Efficiency Class:
D -
Gross volume:
0.1573 m³
-
Internal/external motor:
Internal -
Main lighting colour temperature [K]:
6500 -
Lighting Efficiency - LE hood:
26 lux/W
-
Lighting Efficiency Class:
B -
Lighting Efficiency Class:
B -
Maximum Possible Air Flow:
455 m3/h
-
Motor unit rated power:
150 W -
Motor type/model:
C series -
Net depth:
50 cm
-
Net height max:
94.5 cm -
Net height min:
56.5 cm -
Net weight:
13 kg
-
Net width:
60 cm -
Noise level at 1 speed - extractor by EN 60704-2-13:
59 dB -
Noise level at 2 speed - extractor by EN 60704-2-13:
61 dB
-
Noise level at 3 speed - extractor by EN 60704-2-13:
63 dB -
Nominal Power of the Lighting System - W L:
3 W -
Number of motor units:
1
-
Number units of main lighting:
2 -
Air exhaust diameter:
15 cm -
Type of plug or cable:
Euro plug
-
Power Consumption in Off Mode - Po:
0.34 W -
Power cabel length:
120 cm -
Power rating:
153 W
-
Power Supply Voltage:
230V -
Power unit of main lighting :
1.5 W -
Sound Power Emission at Maximum Speed Available in Normal Use [Intensive or Boost Excluded]:
63 dB
-
Sound Power Emission at Minimum Speed Available in Normal Use:
59 dB -
Noise level:
63 dB -
Time Increase Factor - f:
1.4
-
Time Increase Factor - f:
1.4
-
Air flow at 1 speed - extractor by EN 61591:
