LED lighting
Low light makes kitchen work much more difficult. The same goes for light bulbs that constantly burn out. To guarantee ease of use, Amica hoods are equipped with an innovative energy-efficient LED lighting system. The LED lights are highly durable, and emit a bright and pleasant light which isn’t tiring for the eyes. Choose the Amica hood, and enjoy the best solutions!
i
The graphic materials provided in the product description, such as images and videos, show how a particular function works and may not precisely represent how a specific model works.

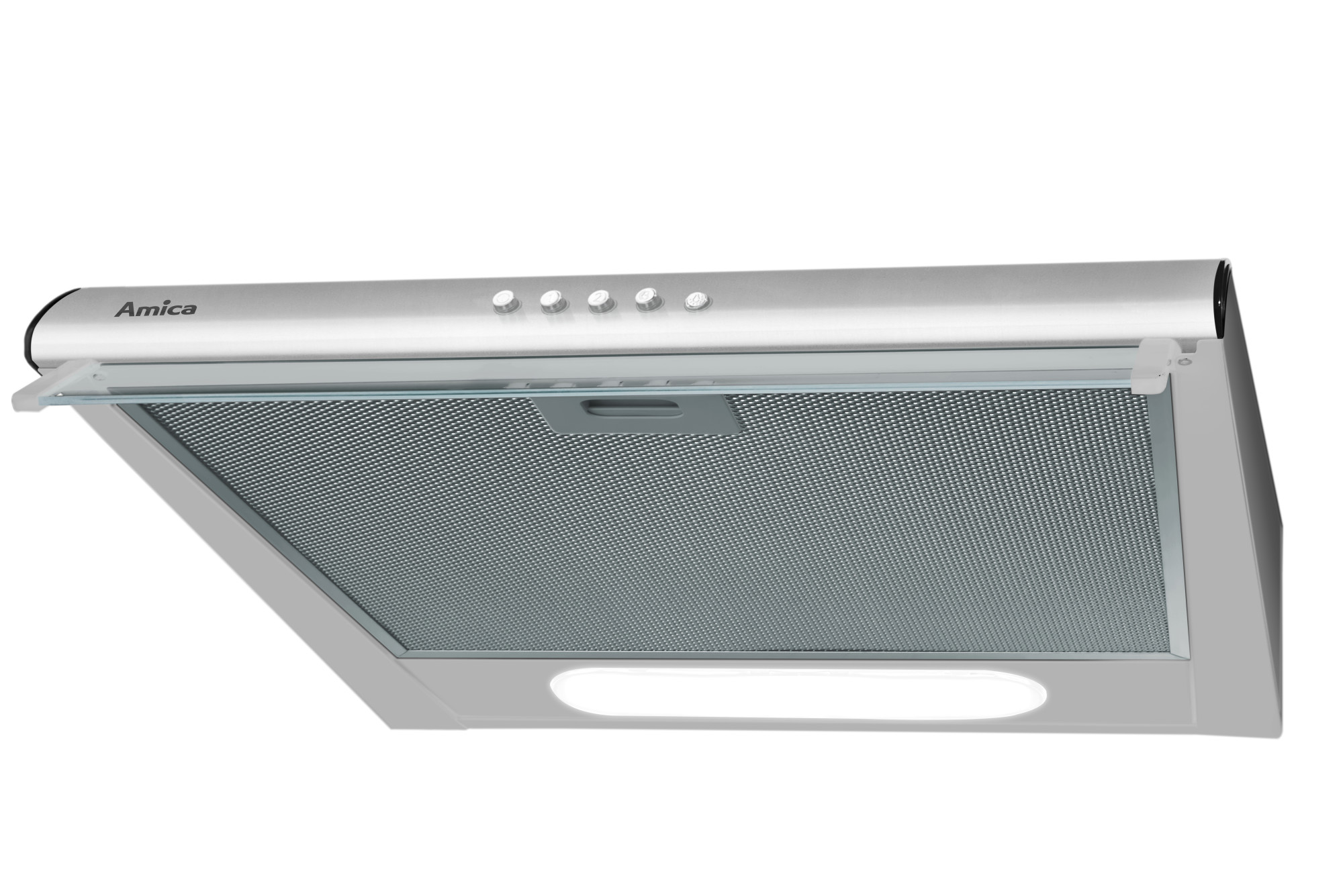

OSC5231I
-
FEATURES
-
Air flaps:
Yes -
Panel - language version:
Pictograms -
Protection class of electric shock:
I_Class
-
Low noise level:
No -
Type of work:
Extraction/Recirculation
-
Air flaps:
-
Equipment
-
Number of carbon filters:
1 -
Number of grease filters:
1 -
Number of layers in grease filter:
3
-
Number of speed:
3 -
Type of control:
Push buttons -
Type of grease filters:
Aluminium frame
-
Carbon filter type:
FWU 50
-
Number of carbon filters:
-
Technical data
-
Frequency:
50 -
Air flow at 1 speed - extractor by EN 61591:
105 m3/h -
Air flow at 2 speed - extractor by EN 61591:
137 m3/h
-
Air flow at 3 speed - extractor by EN 61591:
173 m3/h -
Air Flow at Maximum Speed in Normal Use [Intensive or Boost Excluded]:
173 m3/h -
Air Flow at Minimum Speed in Normal Use:
105 m3/h
-
Air Flow Rate at Best Efficiency Point - Q BEP:
103.8 m3/h -
Air Pressure at Best Efficiency Point P BEP:
181 Pa -
Annual energy consumption:
41.4 kWh
-
Annual energy consumption:
41.4 kWh -
Average Illumination of the Lighting System on the Cooking Surface - E middle:
61 lux -
Control panel on one side/two sides:
One side
-
Dimensions of grease filter:
452 x 321 mm -
Display color:
No -
Distance from light cover to wall:
1.7 cm
-
Distance to electric hob:
45 cm -
Distance to gas hob:
65 cm -
Electric Power Input at Best Efficiency Point - W BEP:
61.7 W
-
Energy Efficiency Index - EEI hood:
80.4 -
Fluid Dynamic Efficiency - FDE hood:
8.5 -
Fluid Dynamic Efficiency Class:
E
-
Grease Filtering Efficiency - GFE hood:
56.3 % -
Grease Filtering Efficiency Class:
E -
Gross volume:
0.0489 m³
-
Internal/external motor:
Internal -
Main lighting colour temperature [K]:
3000 -
Lighting Efficiency - LE hood:
14.5 lux/W
-
Lighting Efficiency Class:
D -
Lighting Efficiency Class:
D -
Maximum Possible Air Flow:
173 m3/h
-
Motor unit rated power:
85 W -
Motor type/model:
K-20 025 02 HE -
Net depth:
47 cm
-
Net height max:
14 cm -
Net height min:
14 cm -
Net weight:
3.92 kg
-
Net width:
50 cm -
Noise level at 1 speed - extractor by EN 60704-2-13:
53 dB -
Noise level at 2 speed - extractor by EN 60704-2-13:
58 dB
-
Noise level at 3 speed - extractor by EN 60704-2-13:
63 dB -
Nominal Power of the Lighting System - W L:
4.2 W -
Number of motor units:
1
-
Number units of main lighting:
1 -
Air exhaust diameter:
12 cm -
Type of plug or cable:
Euro plug
-
Power cabel length:
150 cm -
Power rating:
89 W -
Power Supply Voltage:
230V
-
Power unit of main lighting :
4 W -
Sound Power Emission at Maximum Speed Available in Normal Use [Intensive or Boost Excluded]:
63 dB -
Sound Power Emission at Minimum Speed Available in Normal Use:
53 dB
-
Noise level:
63 dB -
Time Increase Factor - f:
1.7 -
Type of main lighting:
LED bulb E14
-
Type of main lighting:
LED bulb E14
-
Frequency:
